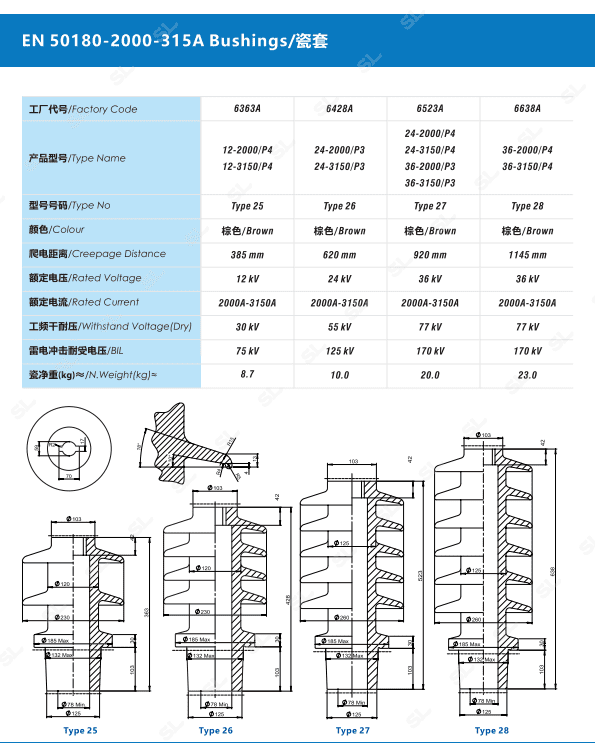

EN50180 H.V Bushings 2000-3150Amp

12kV-P4, 2000-3150A EN 50180 Type 25

Product type: 12kV-P4, 2000-3150A EN 50180 Type 25

• Rated voltage: 12 kV

• Rated Current: 2000-3150 Amp

• Creepage Distance: 385 mm

• Standard: EN 50180

• Colour: Brown

• Material: Porcelain

• Packing: 48 PCS / Pallets 20 Pallets/20GP Container

• Test standard: IEC 60137

24kV-P3, 2000-3150A EN 50180 Type 26

Product type: 24kV-P3, 2000-3150A EN 50180 Type 26

• Rated voltage: 24 kV

• Rated Current: 2000-3150 Amp

• Creepage Distance: 620 mm

• Standard: EN 50180

• Colour: Brown

• Material: Porcelain

• Packing: 32 PCS / Pallets 20 Pallets/20GP Container

• Test standard: IEC 60137

24kV-P4 ,36kV-P3, 2000-3150A EN 50180 Type 27

Product type: 24kV-P4, 36kV-P3, 2000-3150A EN-50180 Type 27

• Rated voltage: 24kV-36kV

• Rated Current: 2000-3150 Amp

• Creepage Distance: 920 mm

• Standard: EN 50180

• Colour: Brown

• Material: Porcelain

• Packing: 32 PCS / Pallets 20 Pallets/20GP Container

• Test standard: IEC 60137

36kV-P4, 2000-3150A EN 50180 Type 28

Product type: 36kV-P4, 2000-3150A EN 50180 Type 28

• Rated voltage: 36 kV

• Rated Current: 2000-3150 Amp

• Creepage Distance: 1135 mm

• Standard: EN 50180

• Colour: Brown

• Material: Porcelain

• Packing: 16 PCS / Pallets 32 PCS / Pallets 20 Pallets/20GP Container

• Test standard: IEC 60137
