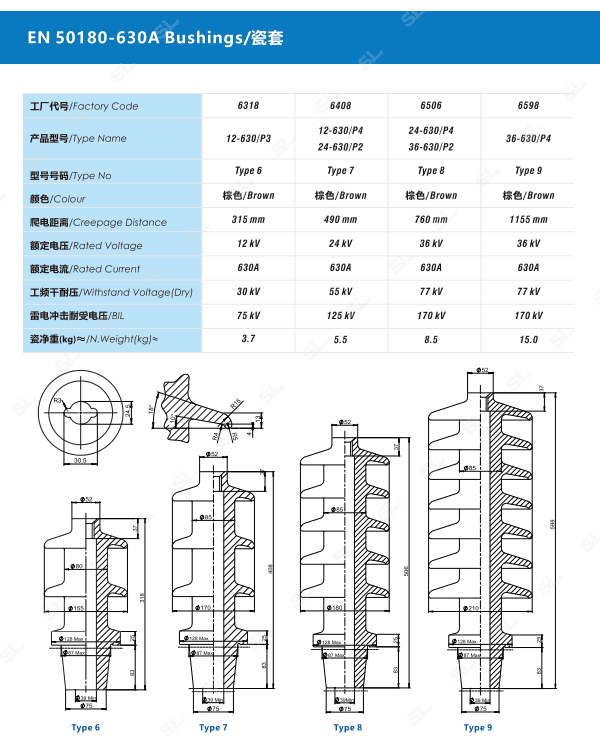

EN50180 H.V Bushings 630Amp

12kV-P3, 630A EN 50180 Type 6

Product type: 12kV-P3, 630A EN 50180 Type8
Product Details:

• Rated voltage: 12 kV

• Rated Current: 630 Amp

• Creepage Distance: 315 mm

• Standard: EN 50180

• Colour: Brown

• Material: Porcelain

• Packing: 147 PCS / Pallets 20 Pallets/20GP Container

• Test standard: IEC 60137

12kV-P4 ,24kV-P2, 630A EN 50180 Type 7

Product type: 12kV-P4, 24kV-P2, 630A EN 50180 Type 7
Product Details:

• Rated voltage: 12 kV-24kV

• Rated Current: 630 Amp

• Creepage Distance: 490 mm

• Standard: EN 50180

• Colour: Brown

• Material: Porcelain

• Packing: 72 PCS / Pallets 20 Pallets/20GP Container

• Test standard: IEC 60137

24kV-P4 ,36kV-P2, 630A EN 50180 Type 8

Product type: 24kV-P4,36kV-P2,630A EN 50180 Type 8
Product Details:

• Rated voltage: 24 kV-36kV

• Rated Current: 630 Amp

• Creepage Distance: 760 mm

• Standard: EN 50180

• Colour: Brown

• Material: Porcelain

• Packing: 72 PCS / Pallets 20 Pallets/20GP Container

• Test standard: IEC 60137

36kV-P4, 630A EN 50180 Type 9

Product type: 36kV-P4, 630A EN 50180 Type 9
Product Details:

• Rated voltage: 36 kV

• Rated Current: 630 Amp

• Creepage Distance: 1155 mm

• Standard: EN 50180

• Colour: Brown

• Material: Porcelain

• Packing: 25 PCS / Pallets 50 PCS / Pallets 20 Pallets/20GP Container

• Test standard: IEC 60137
