DIN42533 12kV-36kV/1000Amp-3150Amp

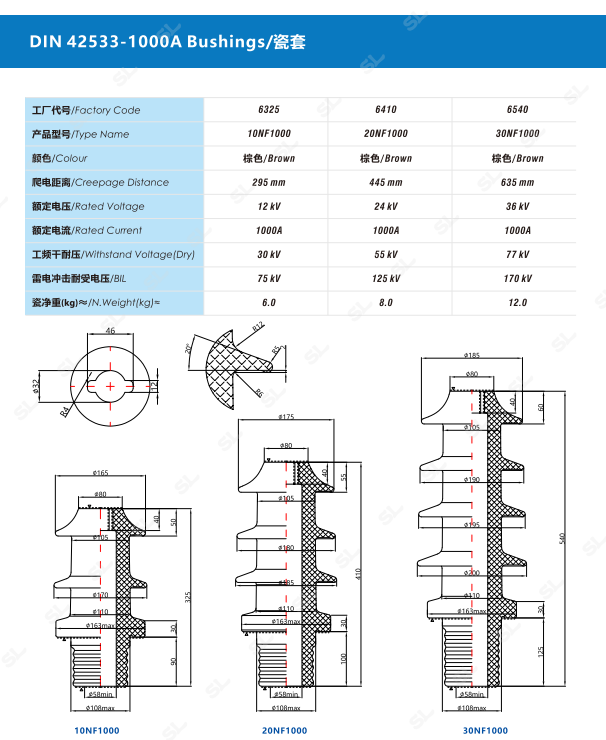

10NF1000 DIN

Product type: 10NF1000A

Product Details:

• Rated voltage: 12 kV

• Rated Current: 1000 Amp

• Creepage Distance: 295 mm

• Standard: DIN

• Colour: Brown

• Material: Porcelain

• Packing: 108 PCs / Pallets 20 Pallets/20GP Container

• Test standard: IEC 60137

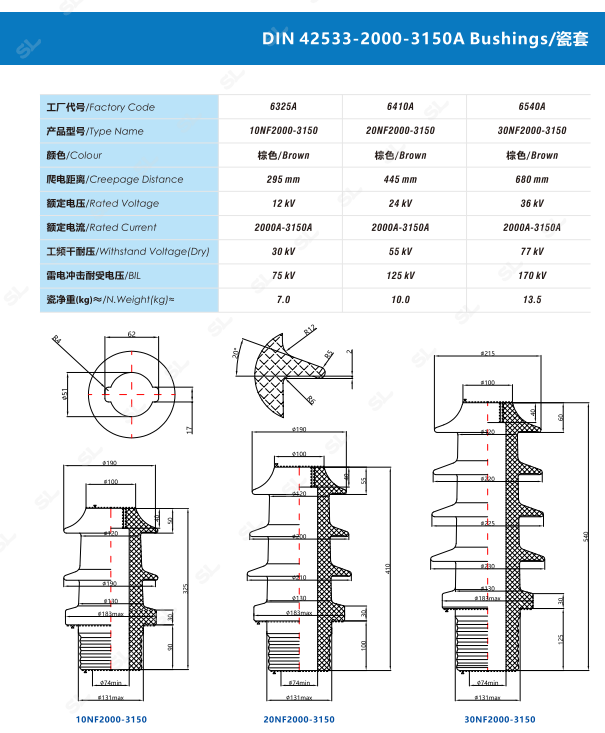

10NF2000-3150 DIN

Product type : 10NF2000A-3150A

Product Details:

• Rated voltage: 12 kV

• Rated Current: 2000 Amp-3150 Amp

• Creepage Distance: 295 mm

• Standard: DIN

• Colour: Brown

• Material: Porcelain

• Packing: 75 PCS / Pallets 20 Pallets/20GP Container

• Test standard: IEC 60137

20NF1000 DIN

Product type : 20NF1000A

Product Details:

• Rated voltage: 24 kV

• Rated Current: 1000 Amp

• Creepage Distance: 445 mm

• Standard: DIN

• Colour: Brown

• Material: Porcelain

• Packing: 50 PCS / Pallets 20 Pallets/20GP Container

• Test standard: IEC 60137

20NF2000-3150 DIN

Product type : 20NF2000A-3150A

Product Details:

• Rated voltage: 24 kV

• Rated Current: 2000 Amp-3150 Amp

• Creepage Distance: 445 mm

• Standard: DIN

• Colour: Brown

• Material: Porcelain

• Packing: 50 PCS / Pallets 20 Pallets/20GP Container

• Test standard: IEC 60137

30NF1000 DIN

Product type: 30NF1000A

Product Details:

• Rated voltage: 36 kV

• Rated Current: 1000 Amp

• Creepage Distance: 635 mm

• Standard: DIN

• Colour: Brown

• Material: Porcelain

• Packing: 50 PCS / Pallets 20 Pallets/20GP Container

• Test standard: IEC 60137

30NF2000-3150 DIN

Product type: 30NF2000A-3150A

Product Details:

• Rated voltage: 36 kV

• Rated Current: 2000 Amp-3150 Amp

• Creepage Distance: 635 mm

• Standard: DIN

• Colour: Brown

• Material: Porcelain

• Packing: 50 PCS / Pallets 20 Pallets/20GP Container

• Test standard: IEC 60137
