DIN42530 1kV/250Amp-3150Amp

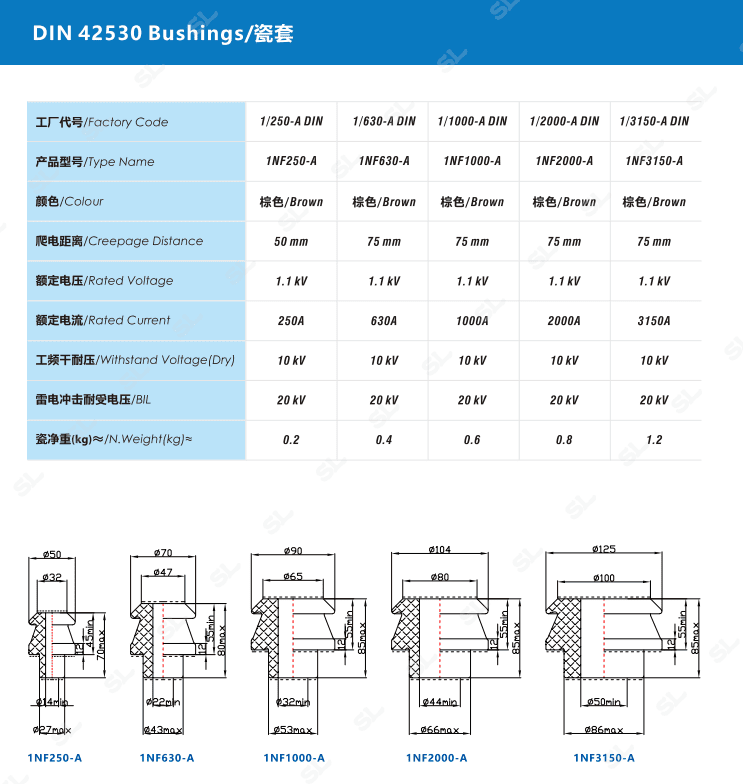

1kV250A-3150A DIN - TOP

Product type:
1kV/250A,630A,1000A,2000A,3150A Top

Product Details:

• Rated voltage: 1 kV

• Rated Current: 250 Amp-3150 Amp

• Creepage Distance:

• 250 Amp (50mm)

• 630 Amp-3150 Amp (75mm)

• Standard: DIN

• Colour: Brown

• Material: Porcelain

• Test standard: IEC 60137

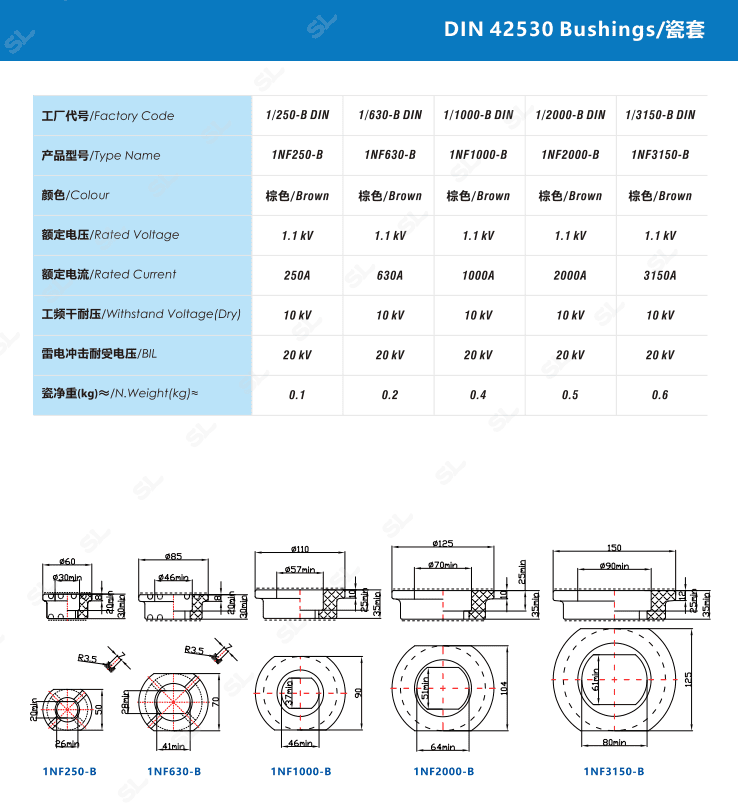

1kV250A-3150A DIN - Bottom

Product type:
ZLKV/250A,630A,1000A,2000A,3150A²-Bottom

Product Details:

• Rated voltage: 1 kV

• Rated Current: 250 Amp-3150 Amp

• Standard: DIN

• Colour: Brown

• Material: Porcelain

• Test standard: IEC60137
