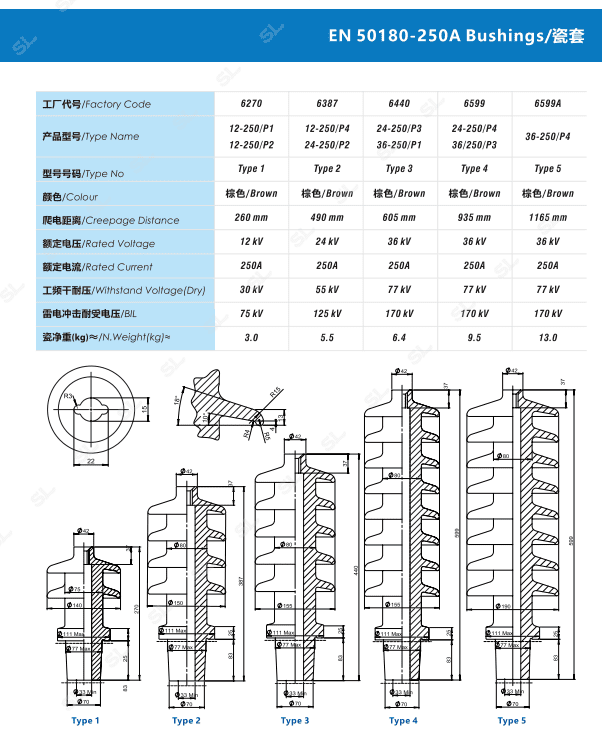

EN50180 H.V Bushings 250Amp

12kV-P1 ,12kV-P2, 250A EN 50180 Type 1

Product type: 12kV-P1, 12kV-P2, 250A EN 50180 Type 1

Product Details:

• Rated voltage: 12 kV

• Rated Current: 250 Amp

• Creepage Distance: 260 mm

• Standard: EN 50180

• Colour: Brown

• Material: Porcelain

• Packing: 224 PCs / Pallets 20 Pallets/20GP Container

• Test standard: IEC 60137

12kV-P4 ,24kV-P2, 250A EN 50180 Type 2

Product type: 12kV-P4, 24kV-P2, 250A EN 50180 Type 2

Product Details:

• Rated voltage: 12 kV-24kV

• Rated Current: 250 Amp

• Creepage Distance: 490 mm

• Standard: EN 50180

• Colour: Brown

• Material: Porcelain

• Packing: 147 PCS / Pallets 98 PCS / Pallets 20 Pallets/20GP Container

• Test standard: IEC 60137

24kV-P3 ,36kV-P1, 250A EN 50180 Type 3

Product type: 24kV-P3,36kV-P1, 250A EN 50180 Type 3

Product Details:

• Rated voltage: 24 kV-36kV

• Rated Current: 250 Amp

• Creepage Distance: 605 mm

• Standard: EN 50180

• Colour: Brown

• Material: Porcelain

• Packing: 98 PCS /Pallets 20 Pallets/20GP Container

• Test standard: IEC 60137

24kV-P4 ,36kV-P3, 250A EN 50180 Type 4

Product type: 24kV-P4, 36kV-P3, 250A EN 50180 Type 4

Product Details:

• Rated voltage: 24 kV-36 kV

• Rated Current: 250 Amp

• Creepage Distance: 935 mm

• Standard: EN 50180

• Colour: Brown

• Material: Porcelain

• Packing: 48 PCS / Pallets 96 PCS / Pallets 20 Pallets/20GP Container

• Test standard: IEC 60137

36kV-P4, 250A EN 50180 Type 5

Product type: 36kV-P4, 250A EN 50180 Type 5

Product Details:

• Rated voltage: 36 kV

• Rated Current: 250 Amp

• Creepage Distance: 1165 mm

• Standard: EN 50180

• Colour: Brown

• Material: Porcelain

• Packing: 30 PCS / Pallets 60 PCS / Pallets 20 Pallets/20GP Container

• Test standard: IEC 60137
