DIN42539 3kV/250Amp-3150Amp

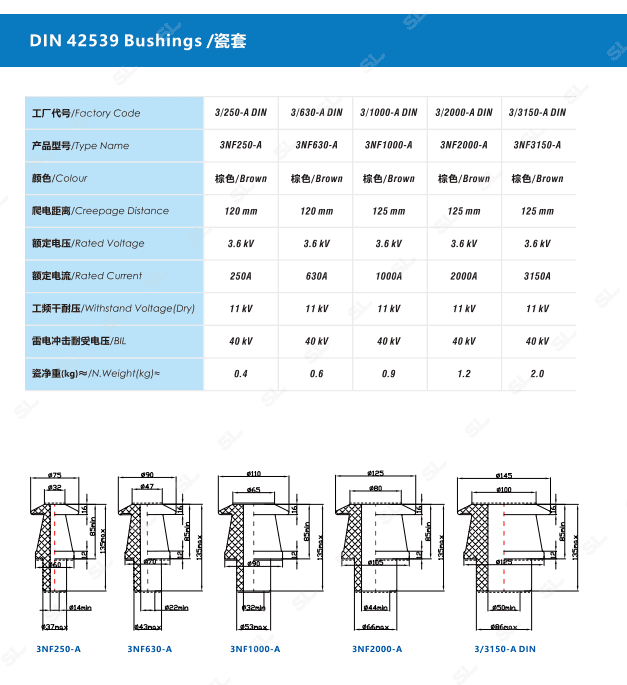

3kV250A-3150A DIN - Top

Product type: 3kV/250A,630A,1000A,2000A,3150A - Top

Product Details:

• Rated voltage: 3 kV

• Rated Current: 250 Amp-3150 Amp

• Creepage Distance:

• 250 Amp-630Amp: 120mm

• 1000 Amp-3150 Amp: 125mm

• Standard: DIN

• Colour: Brown

• Material: Porcelain

• Test standard: IEC 60137

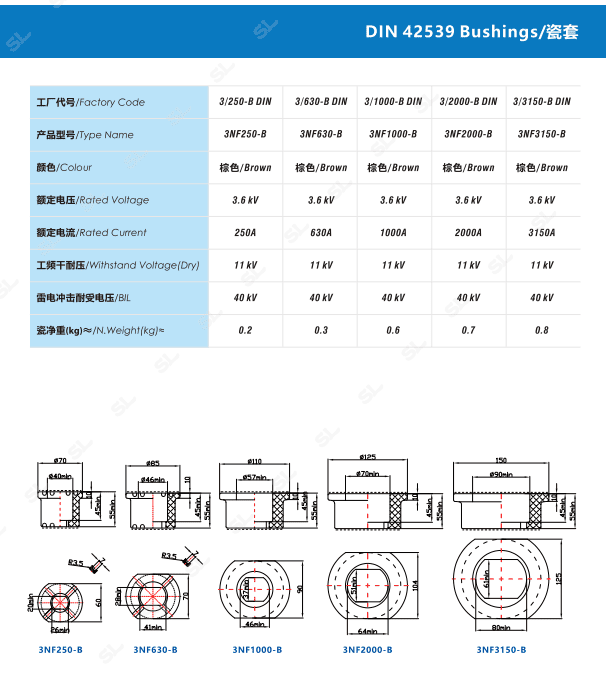

3kV250A-3150A DIN - Bottom

Product type: 3kV/250A,630A,1000A,2000A,3150A - Bottom

Product Details:

• Rated voltage: 3 kV

• Rated Current: 250 Amp-3150 Amp

• Standard: DIN

• Colour: Brown

• Material: Porcelain

• Test standard: IEC80137
