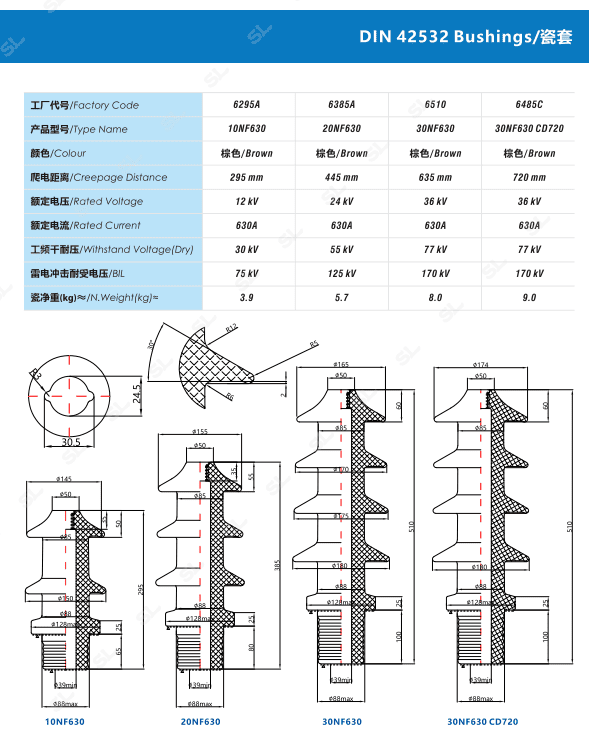

10NF630 DIN; 20NF630 DIN; 30NF630 DIN
Technical Parameters
| Test Standard | IEC 62155 |
| Dimensional Tolerance Standard | DIN 40680 |
| Raw Material Standard | C110 |
Product Series List
| No. | Product Model | Factory Code | Glaze Color | Design Voltage (kV) | Design Current (A) | Creepage Distance (mm) | Porcelain Wall Withstand Voltage (kV) | Estimated Unit Weight (kg) |
| 1 | 10NF630 | 6295 | Brown Glaze (RAL 8016) | 12 | 630 | 300 | 40 | 3.9 |
| 2 | 20NF630 | 6385 | Brown Glaze (RAL 8016) | 24 | 630 | 445 | 40 | 5.7 |
| 3 | 20NF630 CD480 | 6385B | Brown Glaze (RAL 8016) | 24 | 630 | 480 | 40 | 5.3 |
| 4 | 30NF630 | 6485 | Brown Glaze (RAL 8016) | 36 | 630 | 600 | 40 | 8.0 |
| 5 | 30NF630 CD720 | 6485B | Brown Glaze (RAL 8016) | 36 | 630 | 720 | 40 | 9.0 |
| 6 | 30NF630 CD900 | 6485K | Brown Glaze (RAL 8016) | 36 | 630 | 900 | 40 | 11.0 |
10NF630A
Product type: 10NF630A
Product Details:
Rated voltage: 12kV
Rated Current: 630Amp
Creepage Distance: 295mm
Standard: DIN
Colour: Brown
Material: Porcelain
Packing: 144PCs/Pallets 24Pallets/20GPContainer
Test standard: IEC60137
20NF630 DIN
Product type: 20NF630A
Product Details:
Rated voltage: 24 kV
Rated Current: 630 Amp
Creepage Distance: 445 mm
Standard: DIN
Colour: Brown
Material: Porcelain
Packing: 112 PCS / Pallets 24 Pallets/20GP Container
Test standard: IEC 60137
30NF630 DIN
Product type: 30NF630A
Product Details:
Rated voltage: 36kV
Rated Current: 630Amp
Creepage Distance: 635mm
Standard: DIN
Colour: Brown
Material: Porcelain
Packing: 112PCS Pallets 20Pallets/20GP Container
Test standard: IEC60137
