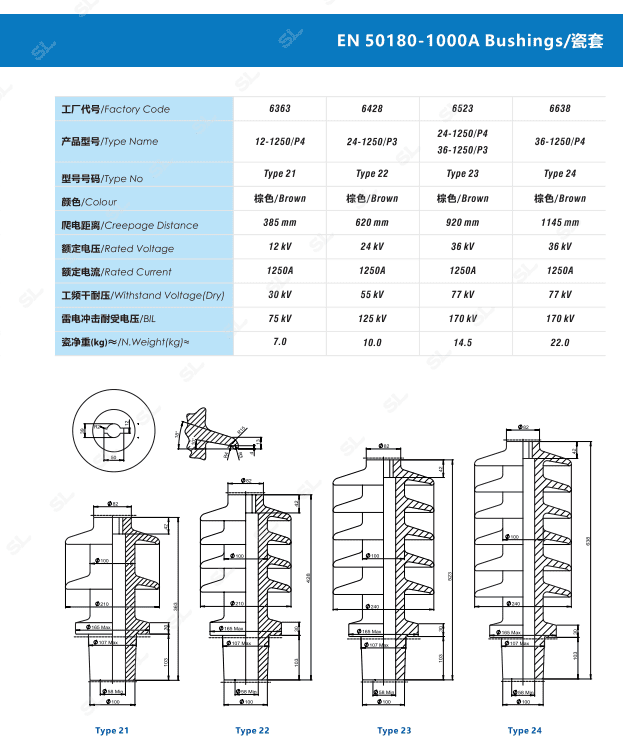

EN50180 H.V Bushings 1250Amp

12kV-P4, 1250A EN 50180 Type21

Product type: 12kV-P4, 1250A EN 50180 Type 21

• Rated voltage: 12 kV

• Rated Current: 1250 Amp

• Creepage Distance: 385 mm

• Standard: EN 50180

• Colour: Brown

• Material: Porcelain

• Packing: 75 PCS / Pallets 20 Pallets/20GP Container

• Test standard: IEC 60137

24kV-P3, 1250A EN 50180 Type 22

Product type: 24kV-P3, 1250A EN 50180-Type 22

• Rated voltage: 24kV

• Rated Current: 1250 Amp

• Creepage Distance: 620 mm

• Standard: EN 50180

• Colour: Brown

• Material: Porcelain

• Packing: 50 PCS / Pallets 75 PCS / Pallets 20 Pallets/20GP Container

• Test standard: IEC 60137

24kV-P4 ,36kV-P3, 1250A EN 50180 Type 23

Product type: 24kV-P4,36kV-P3, 1250A EN 50180 Type23

• Rated voltage: 24kV-36kV

• Rated Current: 1250 Amp

• Creepage Distance: 930 mm

• Standard: EN 50180

• Colour: Brown

• Material: Porcelain

• Packing: 32 PCS / Pallets 20 Pallets/20GP Container

• Test standard: IEC 60137

36kV-P4, 1250A EN 50180 Type24

Product type: 36kV-P4, 1250A EN 50180 Type 4

• Rated voltage: 36 kV

• Rated Current: 1250 Amp

• Creepage Distance: 1145 mm

• Standard: EN 50180

• Colour: Brown

• Material: Porcelain

• Packing: 16 PCS / Pallets 32 PCS / Pallets 20 Pallets/20GP Container

• Test standard: IEC 60137
